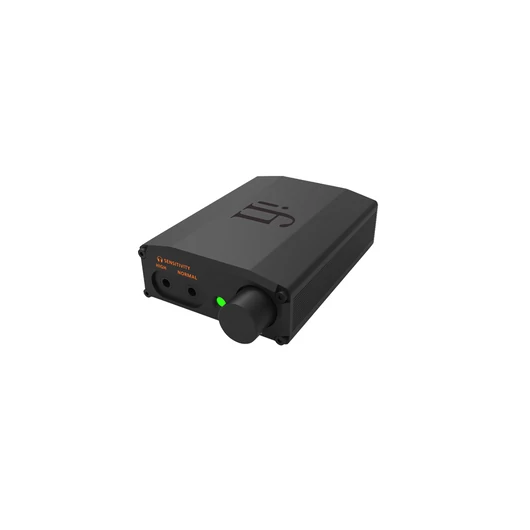

iFi Nano iDSD BL

Specifikácio: General Input(rear): USB2.0 type A “OTG” Socket (with iPurifier® technology built
-in) Output(rear)； 1 x Audio fixed line out L+R 3.5mm Digital Filter: 2 positions, 2 filters Outputs(front): 2 x Headphone Audio 3.5mm one direct and one with iFi iEMatch® integrated DAC DAC: DSD, DXD, PCM DAC by Burr Brown Bit
-Perfect DSD processing, Bit
-Perfect DXD processing Clock: Low
-jitter crystal clock Audio Formats: DSD 256/128/64/12.4/11.2/6.2/5.6/3.1/2.8 DXD 384/352.8kHz PCM 384/352.8/192/176.4/96/88.2/48/44.1kHz MQA 88.2/96/176.4/192kHz filters Filter–PCM: Listen(transient optimised minimum phase) Measure(frequency response optmised) –DSD: Listen(extended bandwidth transient optimised) Measure (narrow bandwidth, low output band noise optimised) –DXD: Fixed Bit
-Perfect Processing –MQA: Fixed MQA Filter Headphone Amplifier Amplifier: Dual Mono 2 x 285mW Direct Drive, coupling capacitor free circuit for highest fidelity Volume Control: 3.5mm TRRS with Balanced compatible wiring Dynamic Range(including DAC): > 109dB(A) @ 3v (Direct) > 107dB(A) @ 0.5V (iEMatch®) THD &N (@ 125mW/30R): < 0.005% Max. Output (<10% THD): > 3.5V @ 600Ω Load (Direct) (20mW/600Ω) > 2.9V @ 30Ω Load (Direct) (285mW/30Ω) > 1.7V @ 15Ω Load (Direct) (200mW/15Ω) Output Impedance : < = 1Ω (Direct) < = 4Ω (iEMatchsup>®) Channel Separation: > 79dB @ 600Ω Load (Direct) > 79dB @ 15Ω Load (Direct) (1kHz, TRRS plug Balanced wiring) Line Output Dynamic Range(Line): > 109dB(A) THD & N(0dBFS Line): < 0.004% Output Voltage(Line): : 2.15V (+/
-0.05V) Output Impedance: < 240Ω Channel Separation: > 99dB (@ 1kHz) Jitter(correlated): Below test set limit Méret: 96(l) x 64(w) x 25.5(h)mm Suly: 139g (0.31 Ibs)

2 év garancia
