Shuttle PC45G desktop tápegység 250W 80+ Bronze BOX

29.190 Ft (22.984 Ft + ÁFA)

Menny.:db

Cikkszám:	PC45G
Bemutatótermünkben:	Előrendelhető
Külső raktáron (szállítás 1-3 munkanap):	Előrendelhető
Nem értékelt
Gyártó:	Shuttle
Gyártó cikkszám:	PC45G

Shuttle PC45G desktop tápegység 250W 80+ Bronze BOX

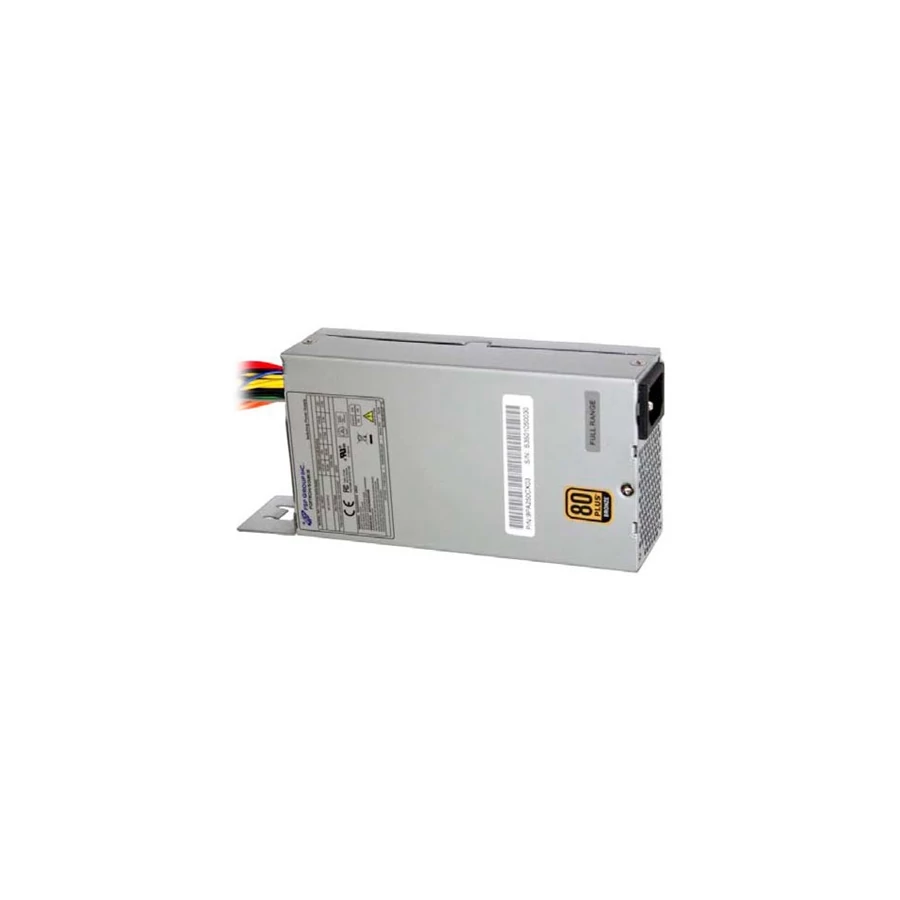

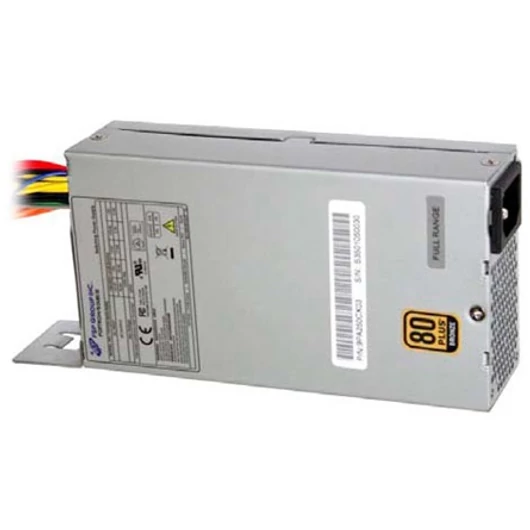

Kép 1/3 - Shuttle PC45G desktop tápegység 250W 80+ Bronze BOX

Kép 2/3 - Shuttle PC45G desktop tápegység 250W 80+ Bronze BOX

Kép 3/3 - Shuttle PC45G desktop tápegység 250W 80+ Bronze BOX

Leírás és Paraméterek
Vélemények

Leírás és Paraméterek

250 Watt 80Plus Bronze Power Supply

The Shuttle XPC Accessory PC45G is an internal AC to DC power supply unit (PSU) meant as a replacement device for certain Shuttle products. It provides a maximum output wattage of 250 Watt. Its 80 PLUS® Bronze and Energy Star V5.0 compliance helps save on energy costs as compared to previous power supply models such as PC40. In addition, its double ball-bearing fan has a longer lifetime and faces to the inside which reduces the noise level to a minimum.

Compatibility
Compatible with XPC chassis of the G, G2, G5, G6 series and the XPC model ST61G4,
NOT compatible with SD11G5, SS58G2, SK83G, SN85G4, SN95G5 and ST20G5.

AC Input
Input voltage: 90~264 V AC (auto-adjust), 47~63 Hz
Input current: max. 3.0~1.5 A
Active Power Factor Correction (PFC) - internal
Over voltage protection (OVP)

AC Input Connector
Cold-device plug, 3-pin with PE (IEC-60320/C14)

DC Output Voltages
Output voltage (max. output current):
+3.3V (18A), +5V (18A), +12V (17A), -12V (0.3A), +5Vsb (2A)
Low ripple & noise

Maximum Output Power
+3.3V and +5V combined power: 100 W
+12V power: 216 W
Total power output: 250 W

DC Output Connectors
1x main mainboard connector (24-pin ATX)
1x mainboard AUX connector (4-pin ATX 12V)
3x Serial ATA power connectors (15-pin SATA)
2x Molex connectors (4-pin IDE/PATA)
1x Floppy connector (4-pin FDD)

Cooling Fan
40 mm double ball-bearing fan

Dimensions
150 x 80 x 40 mm (DWH), Flex ATX form factor

Efficiency
82% / 85% / 82% at 20% / 50% / 100% PSU load

Compliance and Logos
CE, CB, WEEE, ErP, RoHS
80 PLUS® Bronze, meets Energy Star V5.0 requirements

PSU manufacturer
Fortron Source Technology (FSP Group),
Product ID of manufacturer: 9PA250CX03

Package contents:
- Internal AC power supply (250 W) with angle holder
- Quick guide
